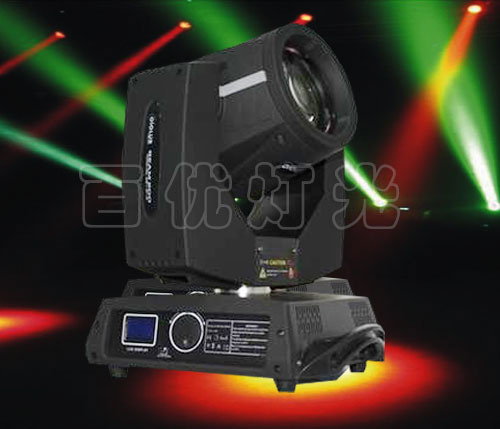

Model BY - B230
Voltage: 110-240v 50/60 hz
Light source: OSRAM SIRIUS HRI 230W/Philips MSD Platinum 7r
Color temperature: 8000k
Lamp's life: 2000 hours
Gobo wheel: 1 gobo wheel, 17 fixed gobo+ open, gobo shaking in high speed.
Color wheel: 1 color wheel, 14 interchangeable color + open,
Prism: 8 prism, rotation bi-direction, beam effect is adjustable from small-big.
Beam angle: 0-3.8 °
Focusing: linear focusing
Dimming: 0-100% linear adjustable
Strobe: speed adjustable mechanical strobe and dimming effect
Channels: 16CH
Display: LCD display
Optical lens: 3 optical lens combination
Motor: 13 mute motor, 2 three-phase motors, 16 bit driver
Pan: 540°
Tilt: 252°
IP20
Carton packaging(1 pc): 42 * 42 * 54 cm
Net weight: 18.5 KG
Gross weight: 21 KG
Flightcase (2 pics inside): 95 * 46 * 71 cm
Gross weight: 65 KGS
Flightcase (4 pics inside): 92 * 87 * 70 cm
Gross weight: 120 KGS
