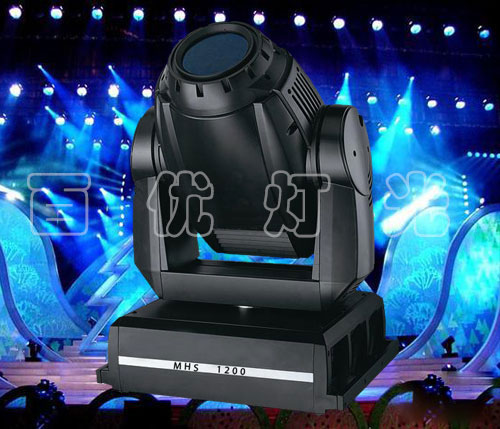

BY - M1200D
The input voltage: AC220-230 - v 50/60 hz
Consumed power: 1500 w
Bulb specifications: HMI 1200 w/S
The dimension of lamps and lanterns: L500 * H760mm W410
Carton size: L620 * H900mm W605
Air box size: L610 * H910mm W480
53 kg net weight:
The performance characteristics of
Display: LCD blue screen, can be very intuitive set personalized features
Yan color: 1 color plate, the basic color 7 color + white light half color effect, linear effect, adjustable speed double rainbow effect
Color: CMY (tricolor) combination effect, colour is infinite. CMY. Infinite mixed color system.
Soft light piece: atomization effect. Figure case: design of rotating disk:
4 + white light design, can replace, the index function, the design of dithering, reversible variable rotation, automatic positive variable rotation
Fixed pattern plate: four design + white light, replaceable, one-way speed water effect, pattern dithering
Fixed pattern outside diameter size: 64 mm, fixed design effective size: 54 mm
Rotation pattern outside diameter size: 53 mm, rotating design effective size: 48 mm
Mirror plate edges: white light, a second prism, a four prism, comet prism, gradient lens.
Focus: DMX linear adjustment, dimming: double call light
Stroboscopic: 0.3 ~ 10 times per second
Rotation Angle: horizontal 450 °, 270 ° vertical direction
Beam Angle: 13 ~ 24 ° linear adjustment
Control mode: international standard DMX512 signal, 24 control channel
Other facilities: horizontal, vertical, adjustable speed, horizontal and vertical
The light lotus root reset system, after the misoperation accident happen, can automatically retrieve reparations, good heat dissipation system fully, overheating protection measures
With photoelectric detection, light soaking time delay, has protective function to the lamp and control system, improve the stability of lamps and lanterns
Through external console or light devices end plate control window, store editor to run the program to the CPU in the body,
Don't need to control table can also be run programming or run a program, can store eight scenes.
Security code is set for the customer, can display light bulbs and lamps and lanterns use time
